The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.

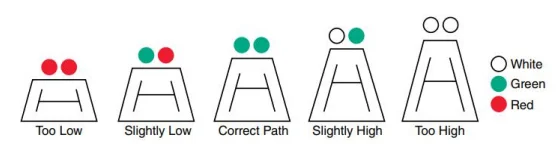

CHAPI Visual Indication:
Compliance
ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light Power supply available in AC(110, 240VAC), DC48V or others
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
Clinometer
VHF pilot to ground remote control
Wireless Remote Control
Application
Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE
